HS & HSZ are single-phase pump units with the durability equivalent to three-phase drainage pumps since the wear parts are made of abrasion-resistant materials. The side discharge, spiral design allows smoother passage of the sucked solid matters. The shaft-mounted agitator prevents “Air Lock” that tends to take place on vortex or semi-vortex pumps.
Features
- Automatic start/stop operation controlled by flow switch.
- Built in sintered alloy agitator to prevent air lock and stir slurry.
- Anti wicking cable offers maximum protection against water penetrating through the cable entry should the cable be damaged extending the life of your pump.
- Vortex impeller designed for “high gap structure” made of urethane rubber that permits solid handling to 7 mm.
- Thermal motor protector
- Semi-vortex impeller designed for “high gap structure” made of urethane rubber that permits solid handling to 7 mm.
- Dual mechanical seals with silcon carbide face provides 5 times higher corrosion wear and heat resistance than tungsten carbide.
- Performs like the non-automatic version in every aspect of construction site usage requiring a tough and durable pump.
- No control panel or float switches are required.
- Performs like the non-automatic pump with no special float installation required.
- Requires very small space to operate – only 8 3/4″ diameter.
- Urethane, Semi Vortex Impeller and Wear Plates for maximum durability while maintaining pump performance.
- Oil Lifter provides lubrication of the seal faces. (Patented)
- V-Ring Seal Protector designs mechanical seals from abrasive particles.
- Environmentally friendly, reducing electrical costs and operational noise. (Technical Features of EL Relay Unit (Level Sensor)
- Sensitive electrodes detect water to start pump operation even when foreign materials are present.
- Internal timer eliminates frequent on/off operation in rough water to extend motor life.
- Relay sensor is completely moulded in resin and covered by a rubber case for protection against rough handling.
- Job site tested for more than 30,000 on-off cycles without failure or damage.
Specifications
- Max Flow: 220 L/min
- Max Head: 18 m
- Motor Type: 240 V – 0.75 kW
- Motor Output: 1/2 hp
- Phase: Single

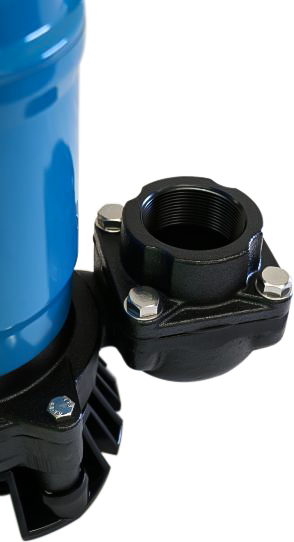

- Discharge Bore: 2″
- Cable Length: 5 m
- Dimension: 285 mm L x 184 mm W x 394 mm H
- Continuous Running Water Level: 11.4 cm
- Pump Weight: 16.4 kg
- Starting Method: Capacitor run
