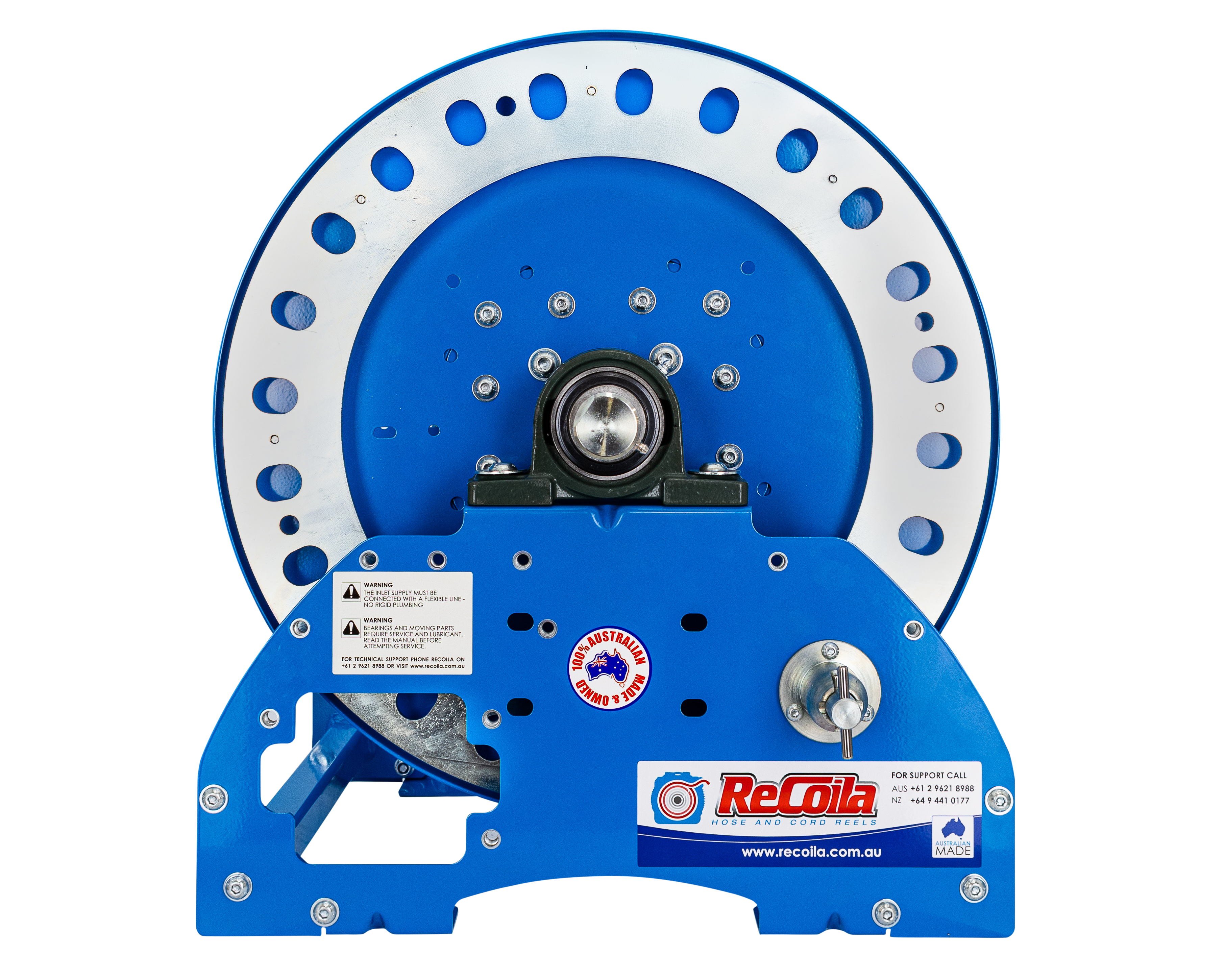

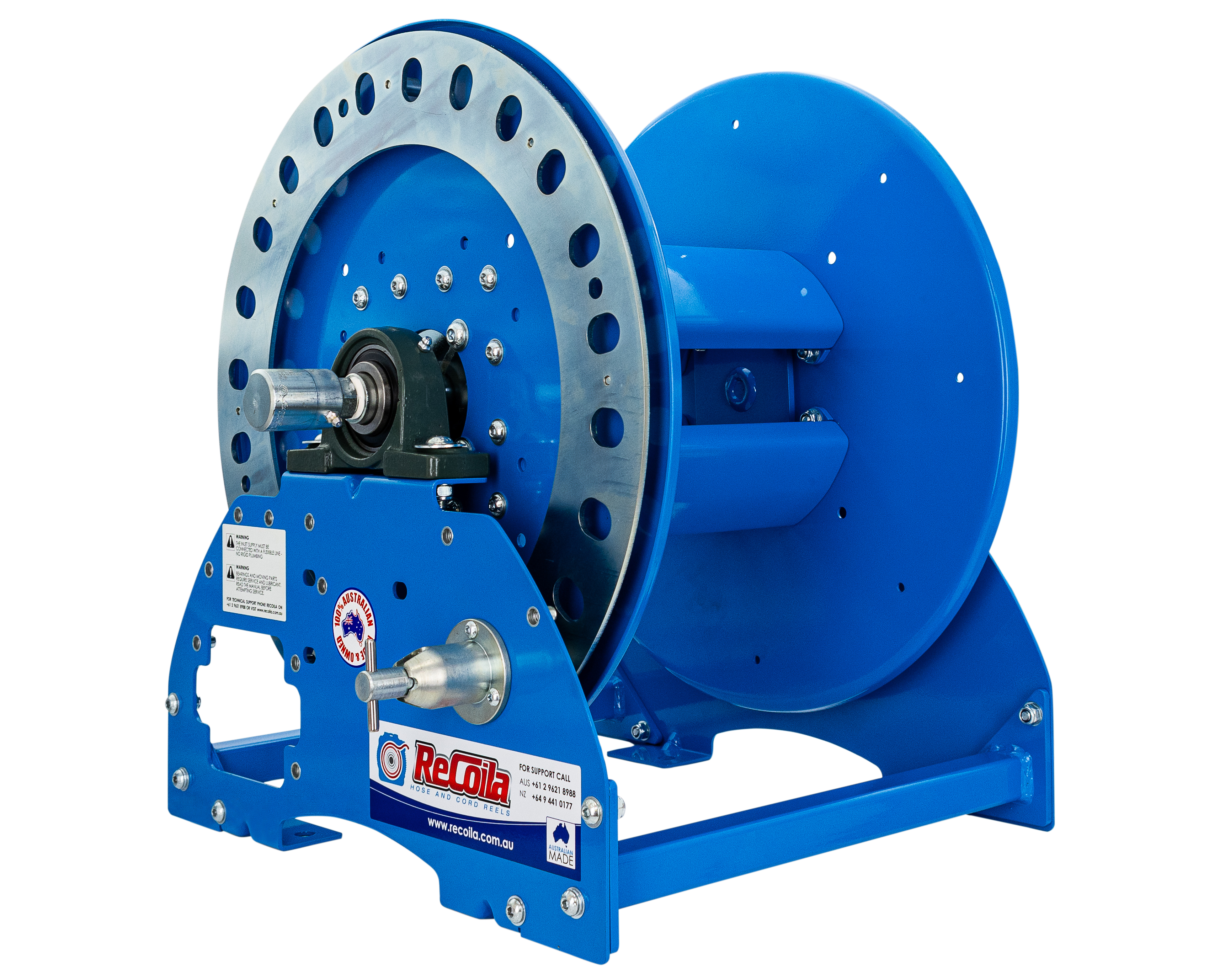

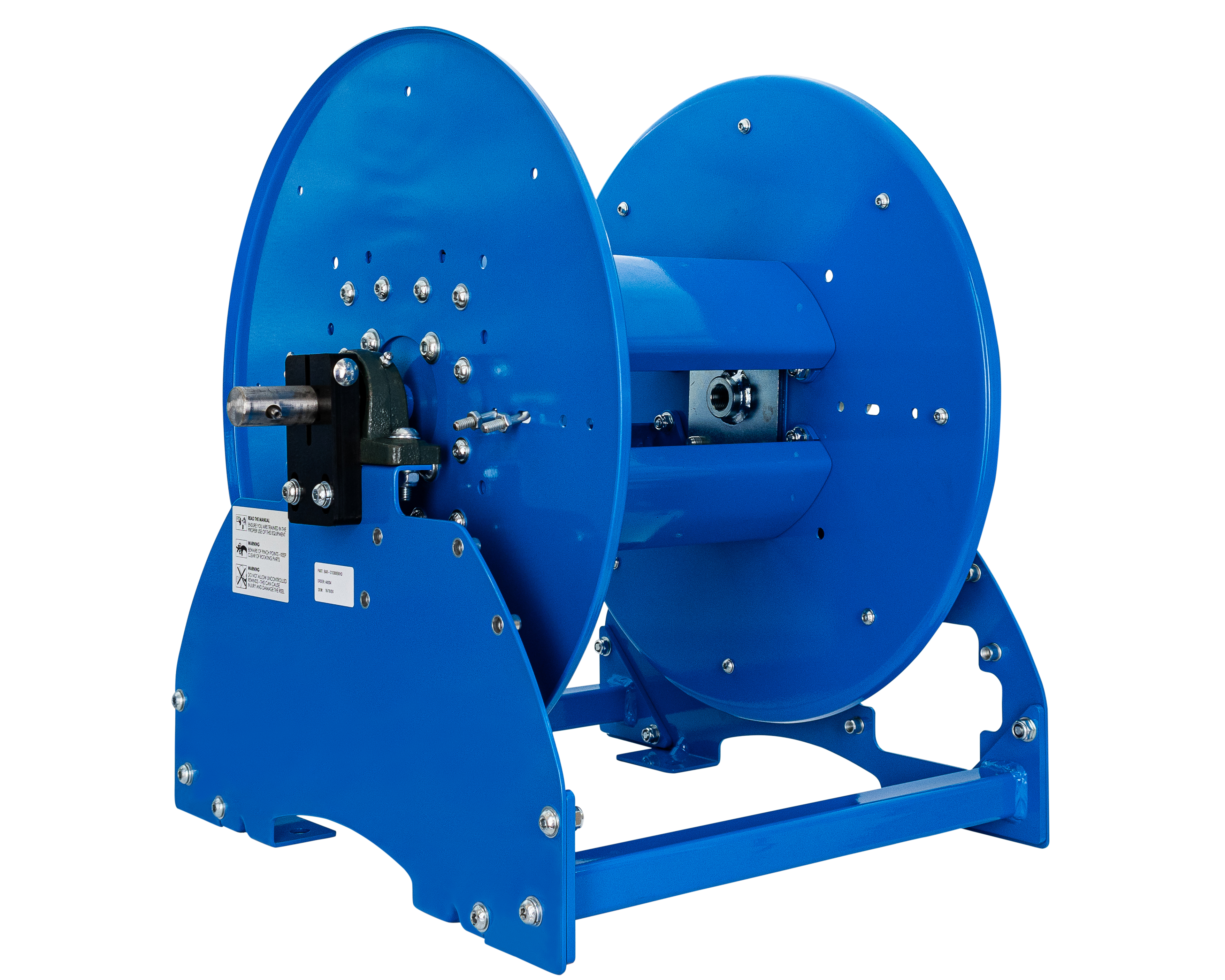

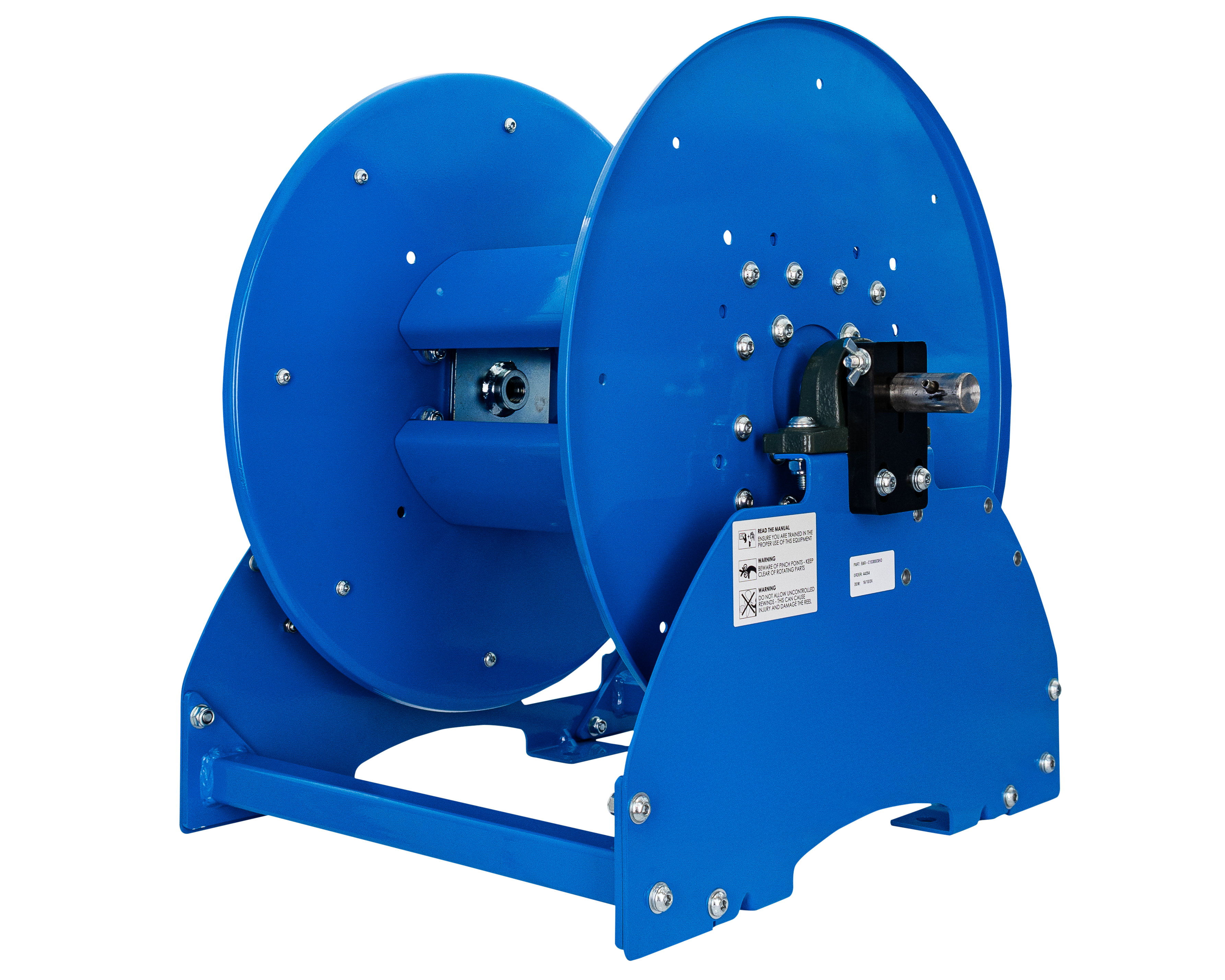

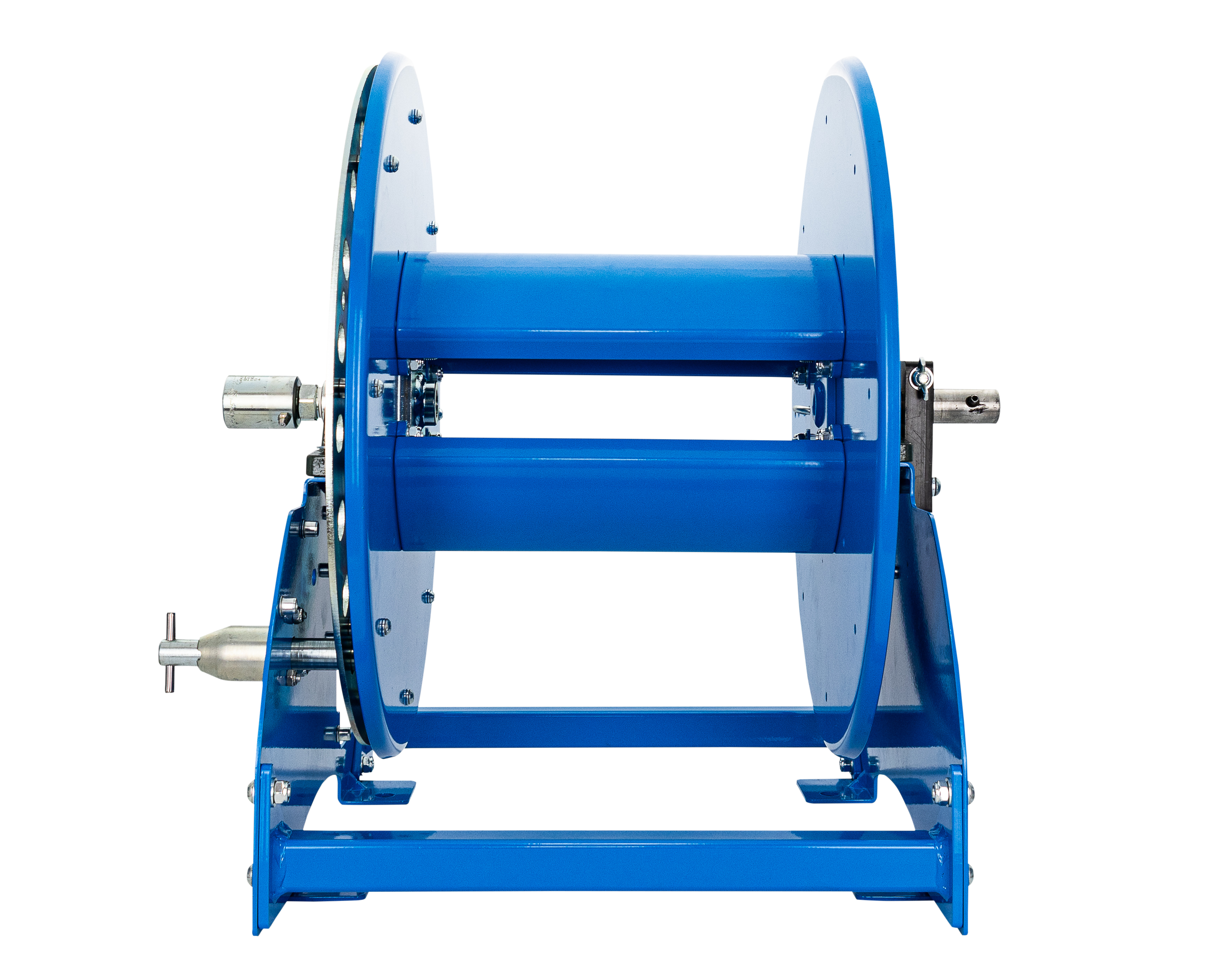

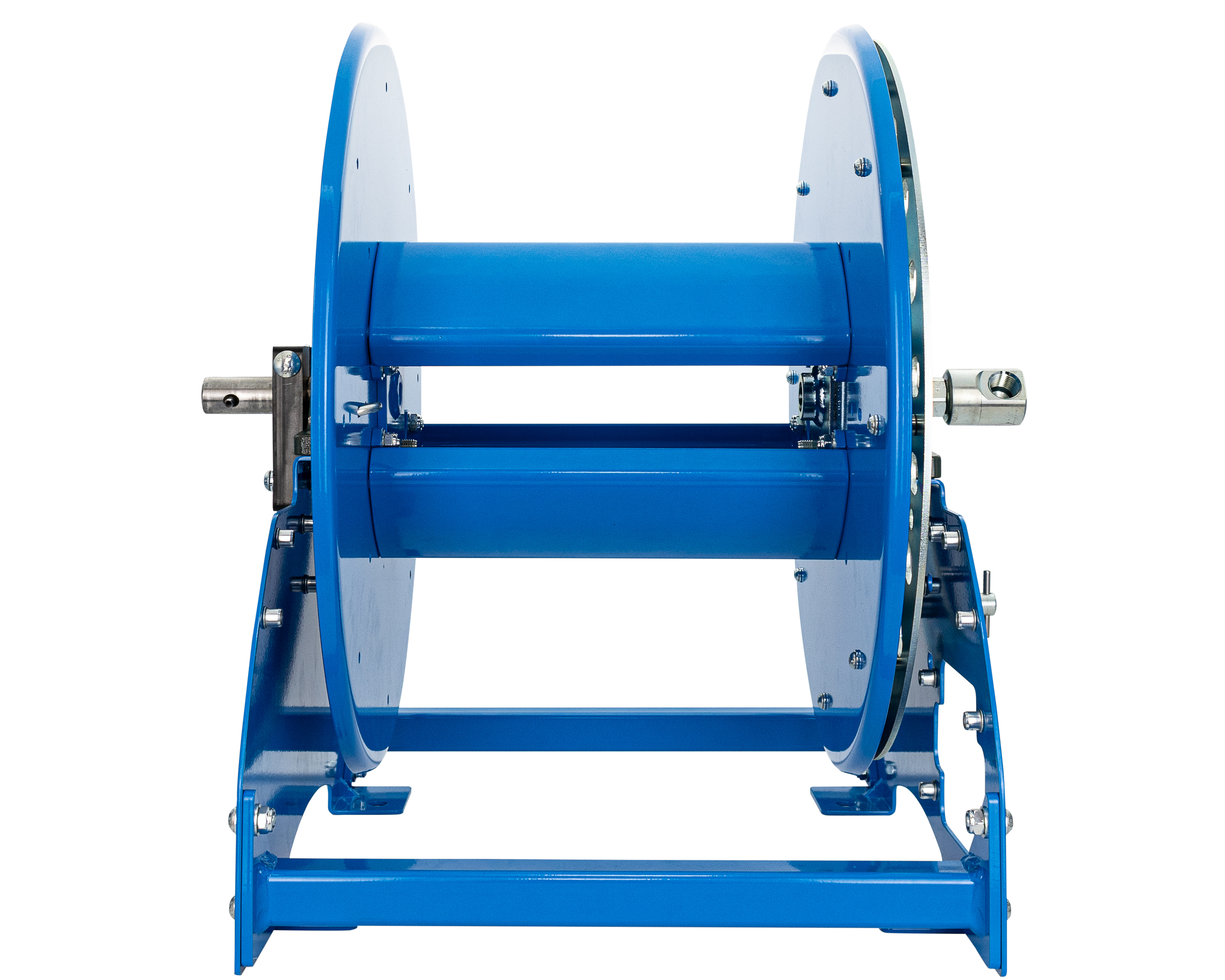

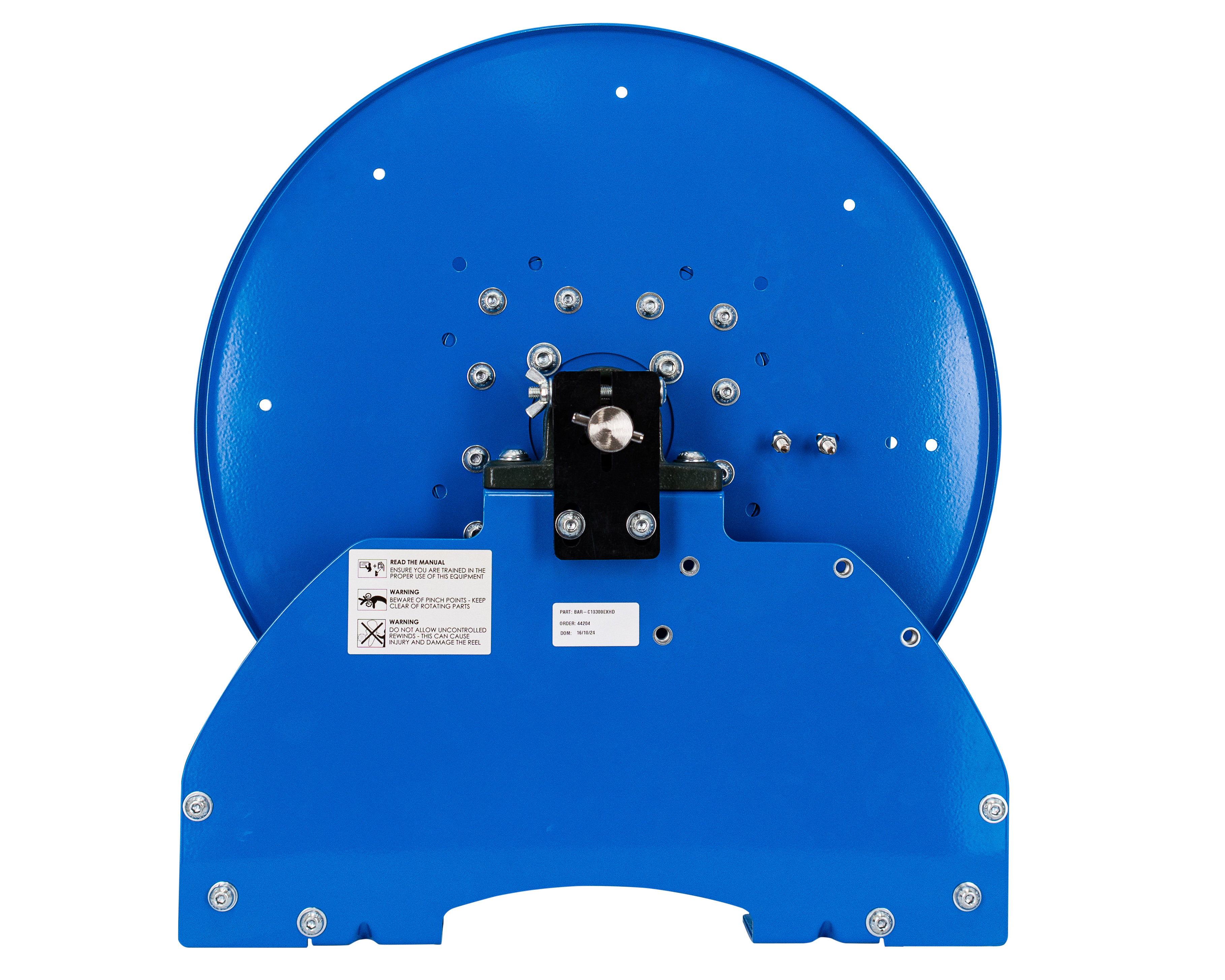

Recoila “C” Series Hose Reel
C12480300 Recoila “C” series Hand Crank hose reel. Bare reel to suit 100m x 3/8” Hose, 5000psi, complete with ½” swivel, Pin Lock, Friction brake, Steel fluid path. Ball bearing main axle bearings. Welded frame, heavy duty spun flanges. This is a bare reel no hose. Note – this reel has ½” Inlet / Outlet
Features
- Compact Rugged Design
- Main axle supported by ball bearings for smooth and reliable rotation
- Heavy-Duty Spring-Loaded Pin lock
- Stainless steel metric fasteners predominately socket head and button head cap screws
- High flow swivels and fluid path
- Positive lock spool-lock holds the spool fixed during transit, preventing overrun
- Bolt together frame and spool offers easy access for maintenance
- Unique modular design allows the user to add or change drive systems with a simple bolt on feature
- Optional Ring gear and spur gear (NO chain and sprockets to adjust)
- Spun 2.4 mm flanges
- 3 mm fabricated side frames
- Optional Fluid Path Construction materials
- Right & Left-Hand configurations
- Our open spool design allows for air flow and less prone to rust
- Carbon Steel Construction (Other Construction Materials available on Request)
- Powder coated blue
- We powder coat with a zinc rich primer all components before assembly
- local parts service and support from Recoila
- Our threaded fittings are standard local BSP
- Standard 1-year warranty
Options for C Series Reels
- Gear guards for Motor Drives only
- Stainless steel roller guides
Exclusions
- Hose Assembly
- Roller Guides
