Features
Our air-cooled diesel engines are engineered with state-of-art air filters to increase durability, and lengthen service intervals. Couple all of that with the engine’s cast iron cylinder liners and you’ve got a machine that doesn’t know how to quit.
- New rugged design for the most extreme conditions
- Equipped with a larger air filtration cartridge with increased capacity
- Cyclonic separator with one-way valve for dust discharge
- New integrated sound dampener provide reduced noise levels
Specifications

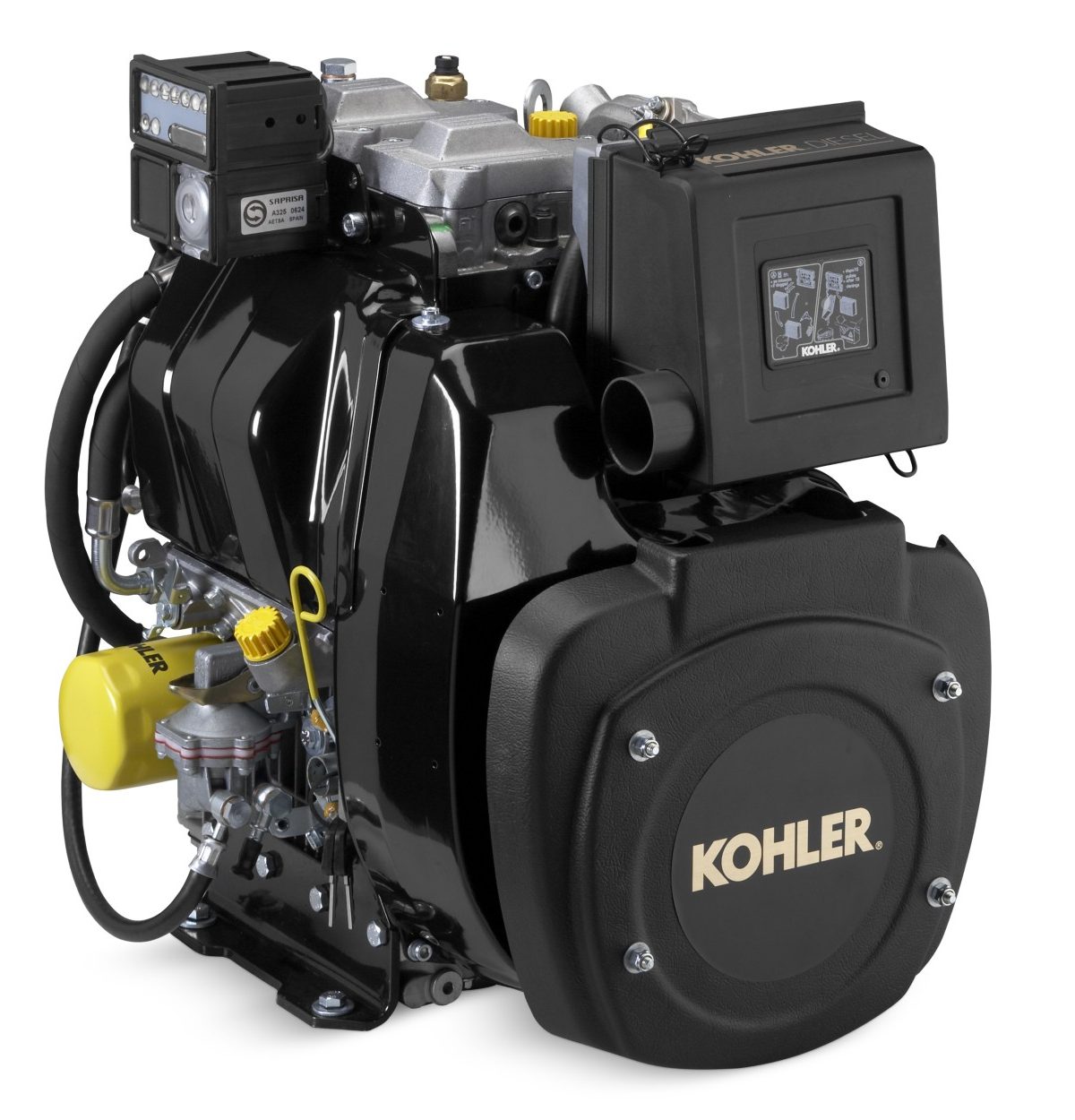

- Model: KD425-2
- Power: 13 kW (17.4 HP) @ 3,600 RPM
- Displacement: 851 cm3 (51.9 in3)
- Bore: 85 mm (3.3″)
- Stroke: 75 mm (3″)
- Maximum Torque: 42 Nm (31 lb-ft) @ 2,200 RPM
- Dry Weight: 63 kg
- Oil Capacity: 1.8 L
- Engine Type: Commercial (Four-stroke, integral fan air cooling, aluminum alloy independent head, electric start, direct injection)
- Compression Ratio: 19.0:1
- Lubrication: Full pressure w/full-flow filter
- Dimensions: L 485 mm x W 464 mm x H 503 mm
