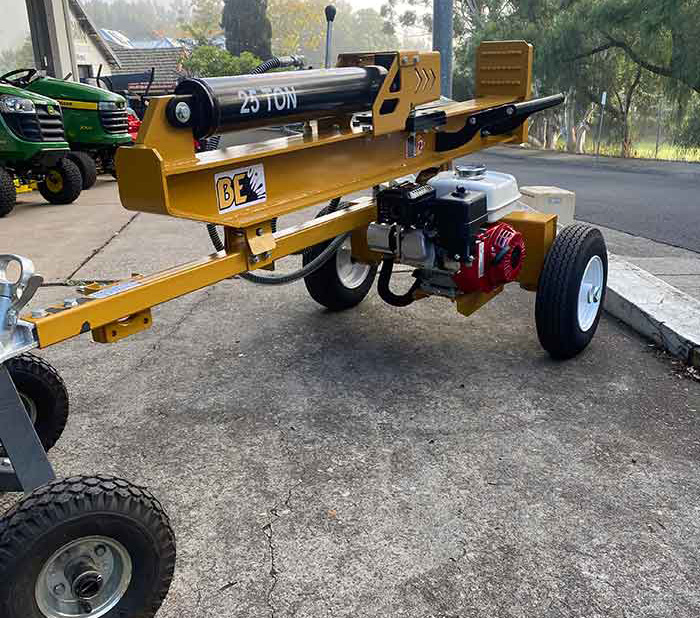

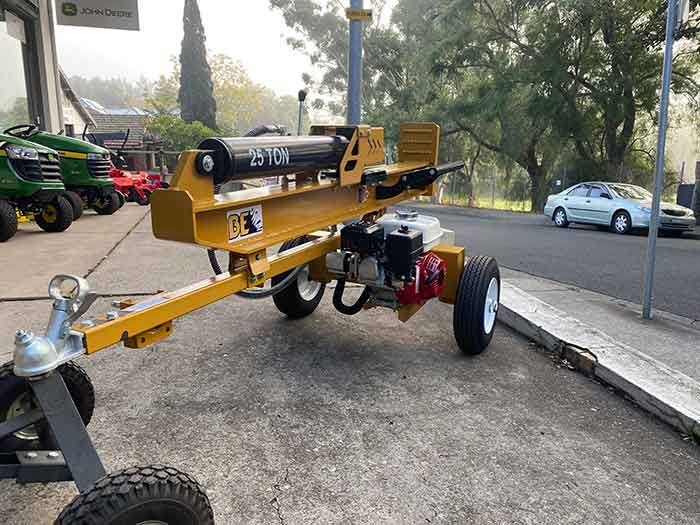

BE 25 Tonne Horizontal/Vertical Log Splitter – Honda GP200

Features

• Full beam with vertical or horizontal position
• Reservoir 25/28 T 14 L, 35 T 21 L
• Wire wrapped hydraulic hose
• Polymer fender kit

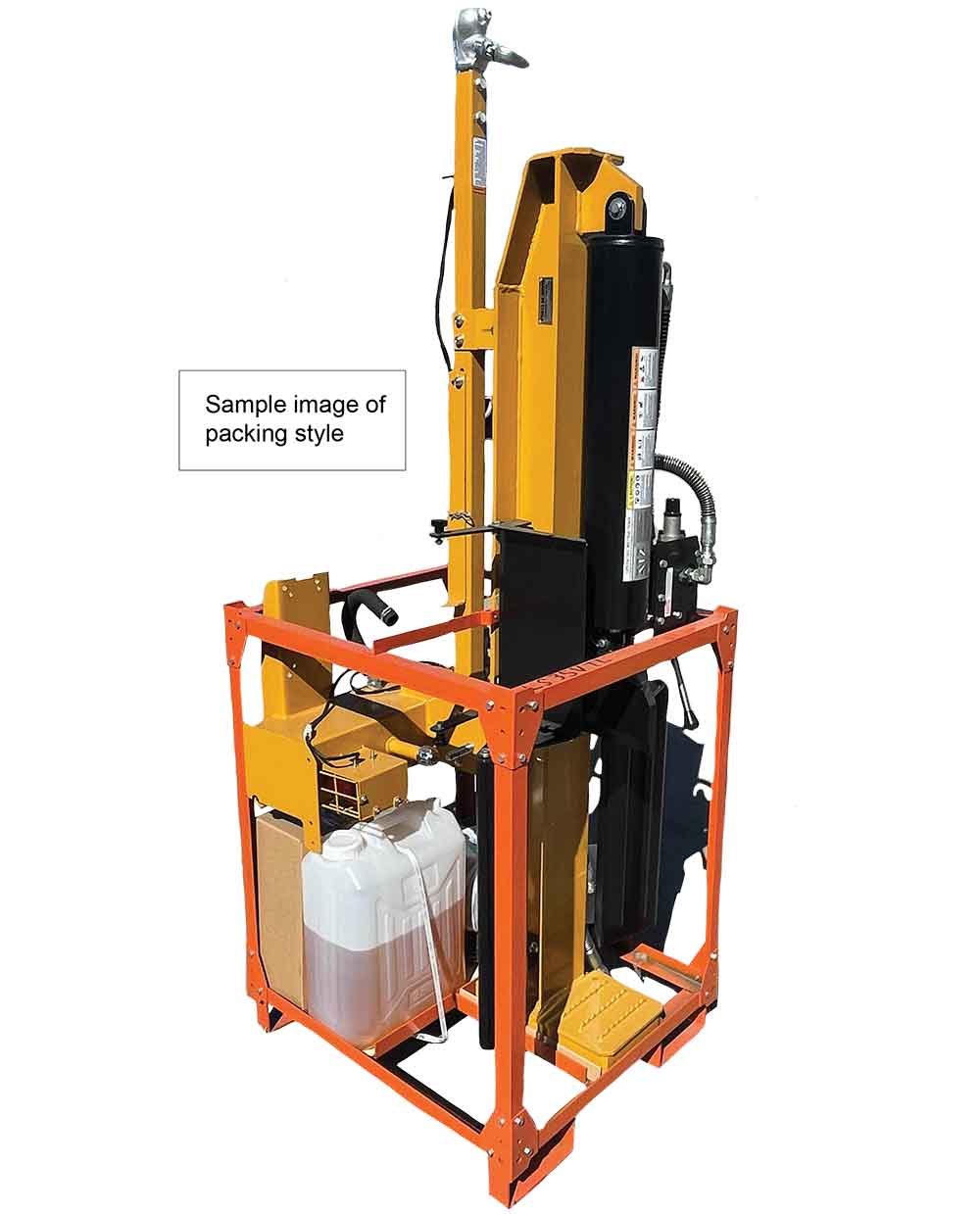

• Semi assembled to save time
• Easy Transition from Horizontal to Vertical Position
• 3 Position Control Valve with Auto Ram Return
• Extra Wide Log Cradle to Keep Logs in Place and Catch Pieces While Splitting
• Industrial-grade Full I-Beam Construction Prevents Bending or Twisting
• Heavy Duty Tapered Wheel Bearings
• 2-year residential, 180-day commercial warranty
• Supplied with oil (Shell Tellus S2M #32)

Specifications

• Split Force: 25 Tonne
• Max Pressure: 3,500 PSI
• Engine: Honda GP200 6.5 HP
• Cylinder Bore: 4″ x 24″
• Splits Log: Up to 635 mm L x 203 mm W
• Cycle Time: 13 seconds
• Hydraulic Pump: 42 L/min
• Relief Valve Setting: 2,500 PSI
• Unit Weight: 232 kg
