Features

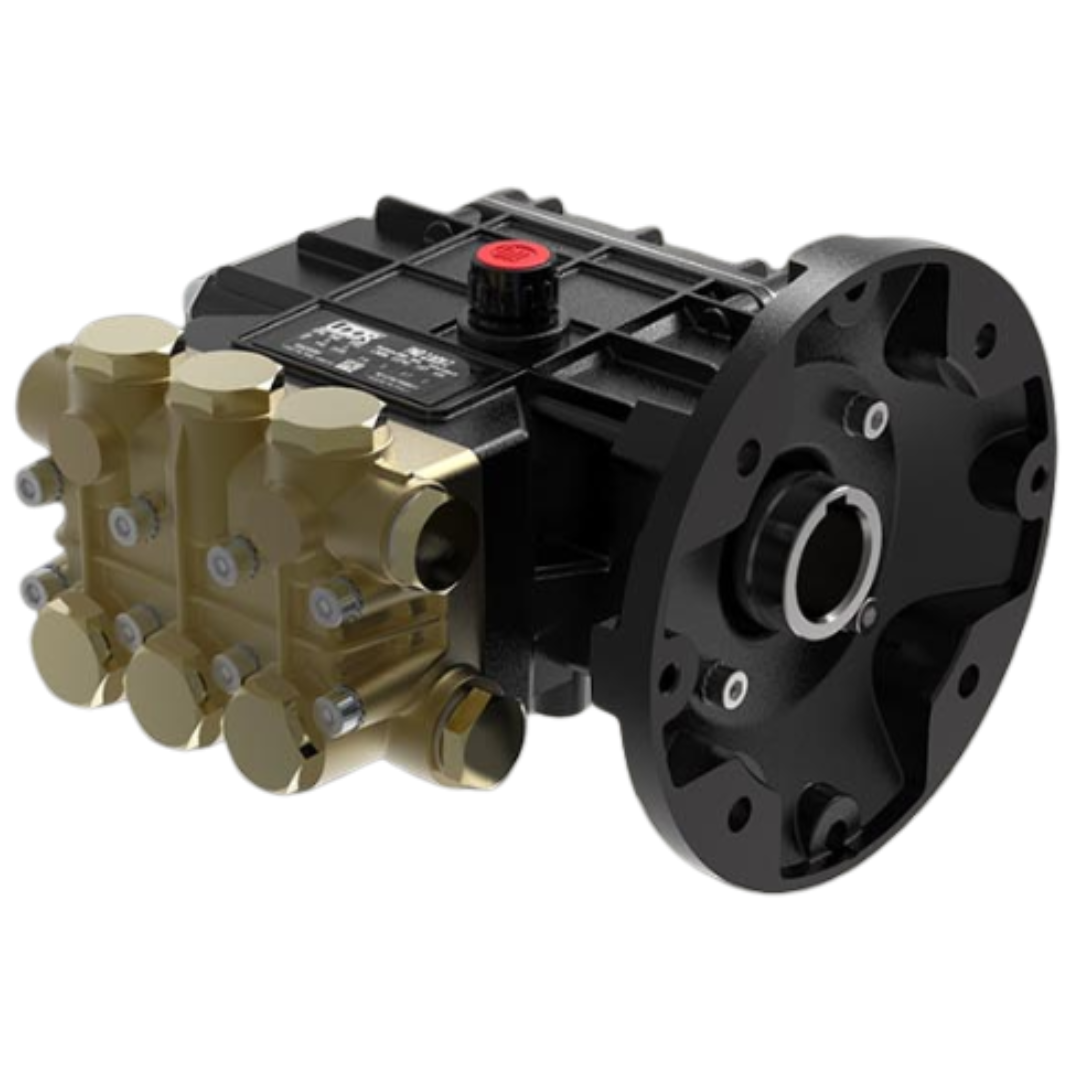

• Reciprocating plunger pump, 3 solid ceramic plungers, forged reinforced brass head, aluminum die cast crankcase with cataphoresis coating, double sealing system, hardened steel crankshaft, oversize roller/ball bearings.
• The pumps of this series have a 28 mm hollow shaft, they produce a flow of12 L/min, they operate at max 140 bar.
• Some models are available with built-in unloader valve (and injector).
• All models are also available with aluminum die-casted head for pressure up to 90 bar (1,300 PSI).

Specifications

• Series: PN
• Pump – Type: Plunger
• Speed: 1450 RPM
• Flow: 12 L/min
• Pressure: 2030 PSI
• Power: 4.3 HP
• Weight: 6 kg
• Pump Shaft: Hollow, 28 mm
