Features

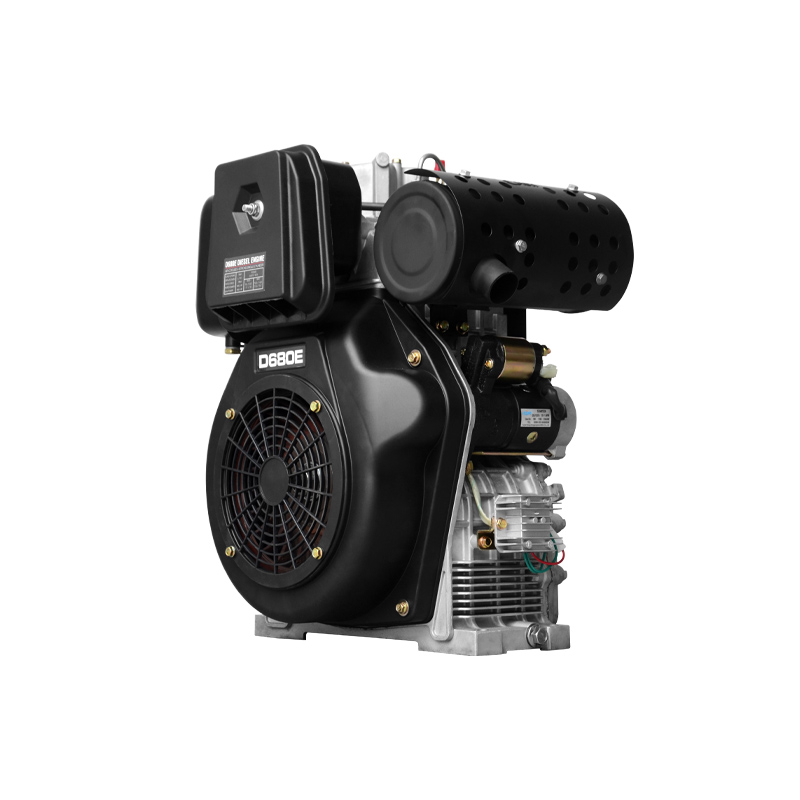

- ITC air-cooled diesel engines are engineered with quality parts to improve durability, boost engine performance and lengthen service intervals. Coupled with a cast iron cylinder liner, you’ve got a machine that won’t quit.
- For hot water pressure cleaners
- Reliable power output
- Rugged Design for most conditions and environments
- Integrated sound dampener (silencer/muffler) reduces noise levels
- Direct Injection means better performance
- Low fuel and oil consumption
Specifications
- Type: Single cylinder, vertical, 4-stroke, air-cooled
- Bore x Stroke: 102 x 83 mm
- Displacement: 0.678 L (678 cc)
- Compression Ratio: 20:1
- Rated Speed: 3,600 RPM
- Rated Power: 10 kW (13.7 HP) / 10.5 kW (14.3 HP)
- Max. Power: 11 KW (15 HP) / 11.5 kW (15.7 HP)
- Fuel Tank Capacity: –
- Fuel Consumption: ≤272 g / 280 kw per hr
- Lube Oil Capacity: 2 L
- Starting: Electric
- Output Shaft: Crankshaft / Camshaft
- Fuel trademark: 0#(summer), -10#(winter) diesel
- Oil trademark: CD grade or SAE10W-30 15W-40
- Weight: 65 kg
- Dimensions: 433 × 475 × 537 mm
- Shipping:
- Loading Capacity: 192/384
