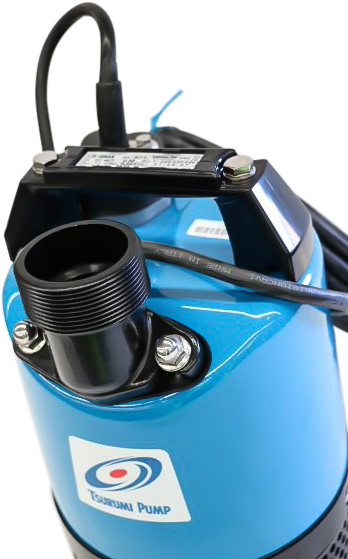

The LB/LB-A series are submersible single-phase portable drainage pumps. The discharge direction is selectable between vertical and inclined to prevent the folding or bending of the discharge hose. Every LB-series is slim design enough to be accommodated in an 8-inch pipe. The LB-A series with an innovative electrode-type relay unit automatically starts and stops the pump to eliminate dry-running.

Features

• Automatic start/stop the pump.
• Anti wicking cable offers maximum protection against water penetrating through the cable entry should the cable be damaged extending the life of your pump.
• 50 mm discharge direction that is selectable between vertical or inclined.
• Thermal motor protector.
• Dual mechanical seals with silcon carbide face provides 5 times higher corrosion wear and heat resistance than tungsten carbide.
• Performs like the non-automatic version in every aspect of construction site usage requiring a tough and durable pump.
• No control panel or float switches are required.
• Performs like the non-automatic pump with no special float installation required.
• Requires very small space to operate – only 8 3/4″ diameter.
• Urethane, Semi Vortex Impeller and Wear Plates for maximum durability while maintaining pump performance.
• Oil Lifter provides lubrication of the seal faces. (Patented)
• V-Ring Seal Protector designs mechanical seals from abrasive particles.

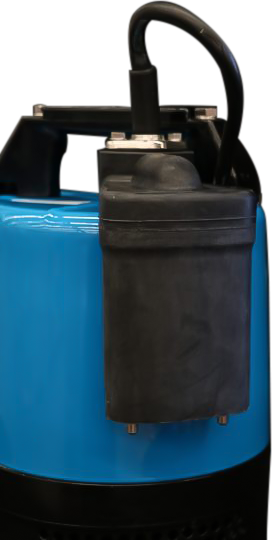

• Environmentally friendly, reducing electrical costs and operational noise. (Technical Features of EL Relay Unit (Level Sensor)
• Sensitive electrodes detect water to start pump operation even when foreign materials are present.
• Internal timer eliminates frequent on/off operation in rough water to extend motor life.
• Relay sensor is completely moulded in resin and covered by a rubber case for protection against rough handling.
• Job site tested for more than 30,000 on-off cycles without failure or damage.

Specifications

• Max Flow: 250 L/min
• Max Head: 11 m
• Motor Type: 240 V – 0.48 kW
• Motor Output: 2/3 hp
• Phase: Single
• Discharge Bore: 2″
• Impeller Type: Semi-vortex urethane rubber
• Cable Length: 10 m
• Dimension: 189 mm W x 286 mm Height
• Continuous Running Water Level: 5.08 cm
• Pump Weight: 11 kg
• Starting Method: Capacitor run
