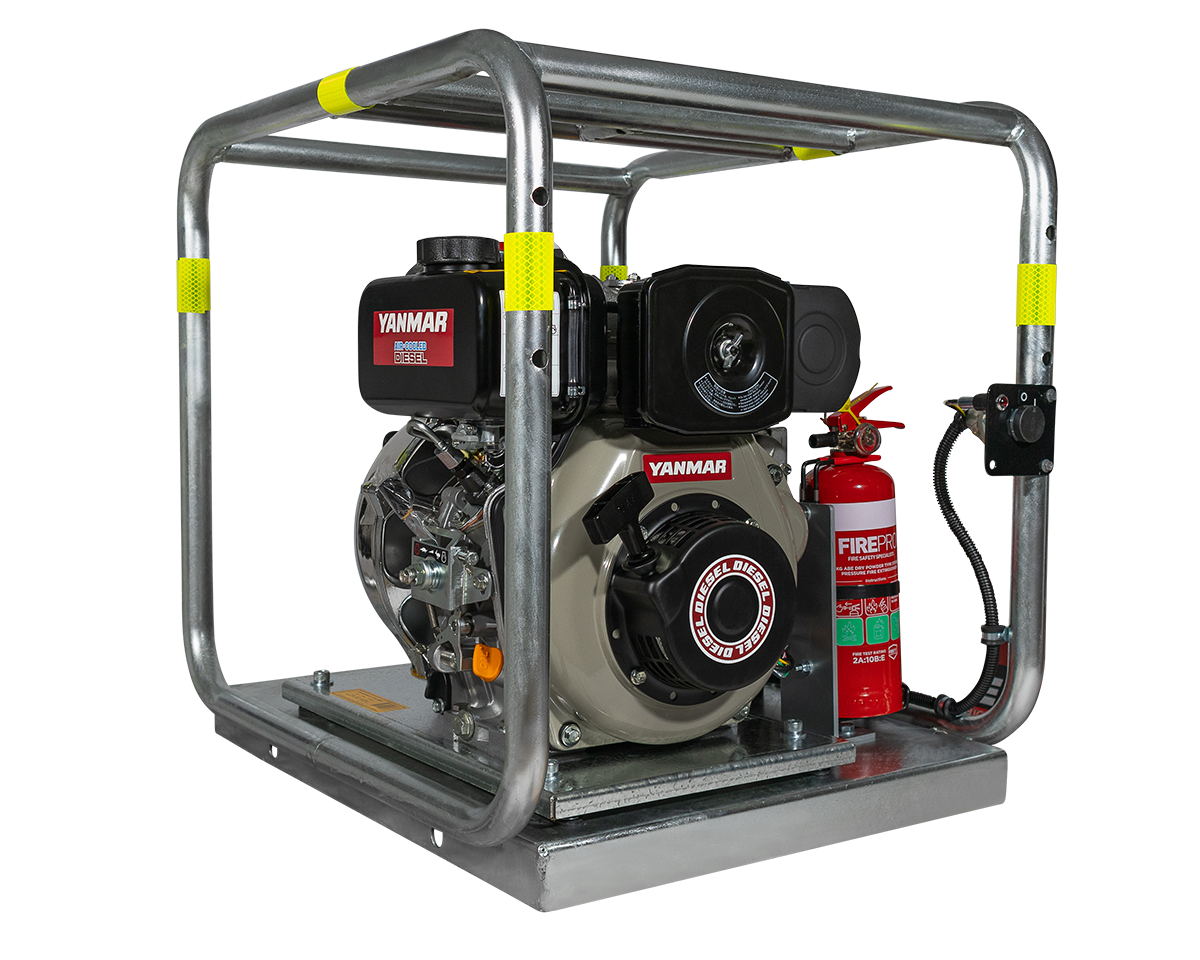

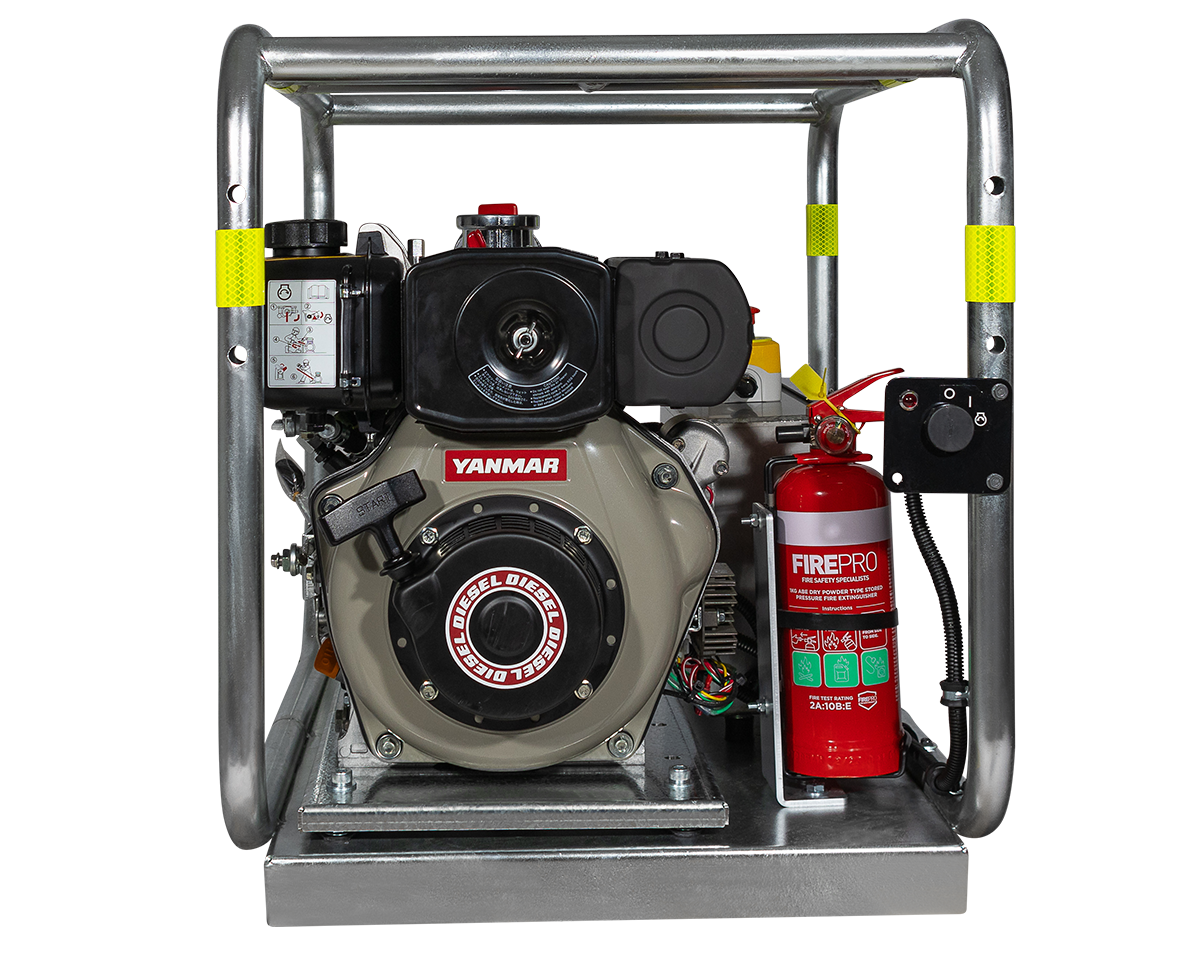

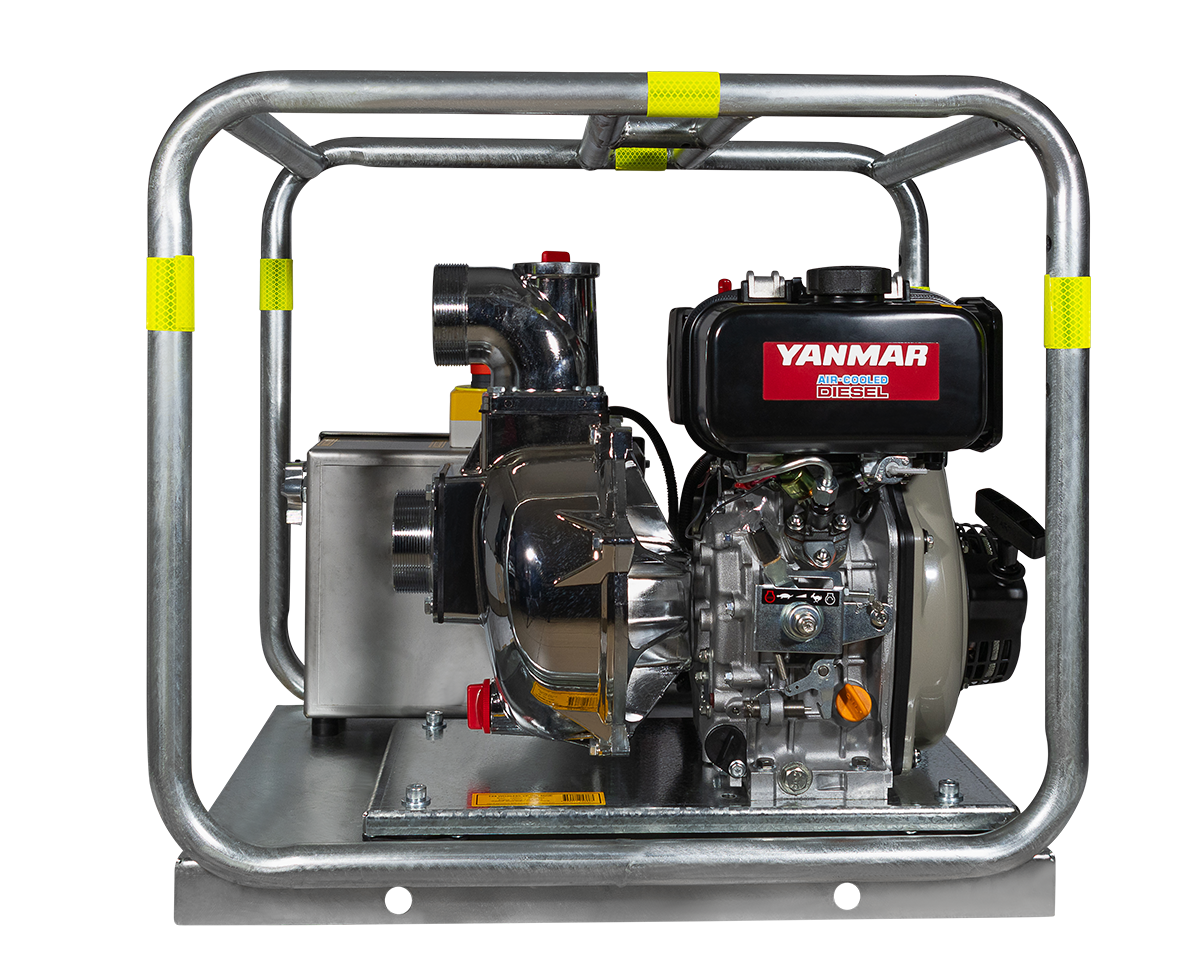

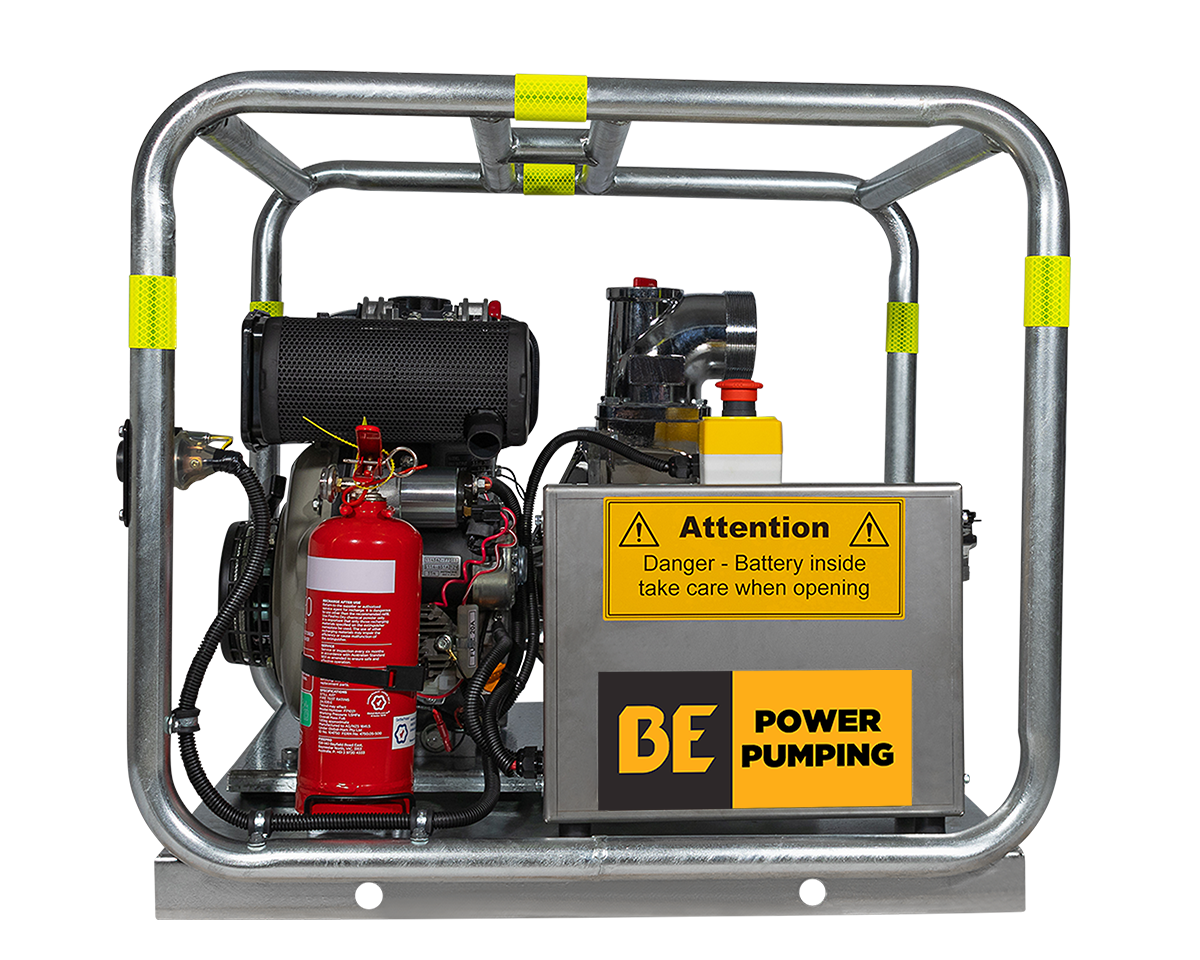

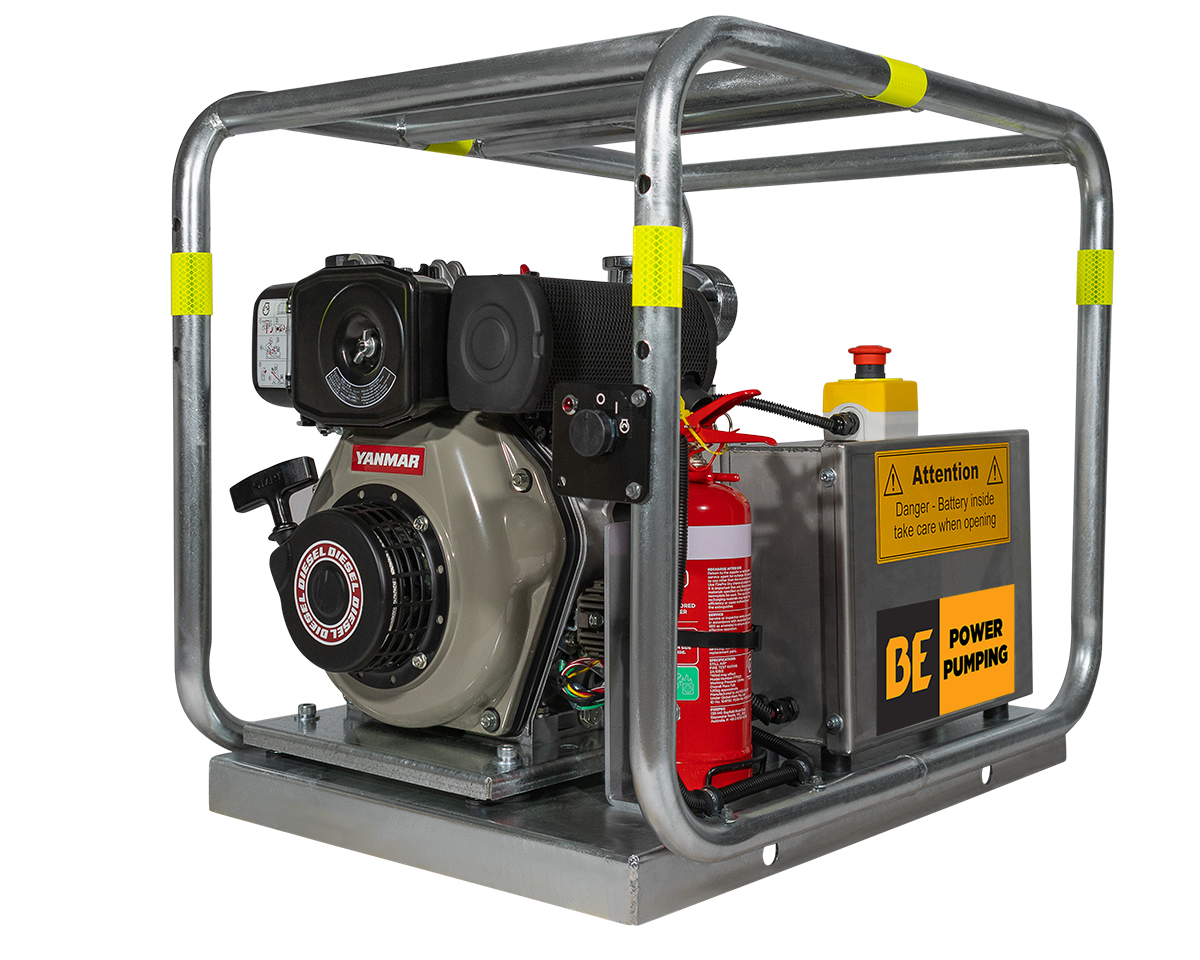

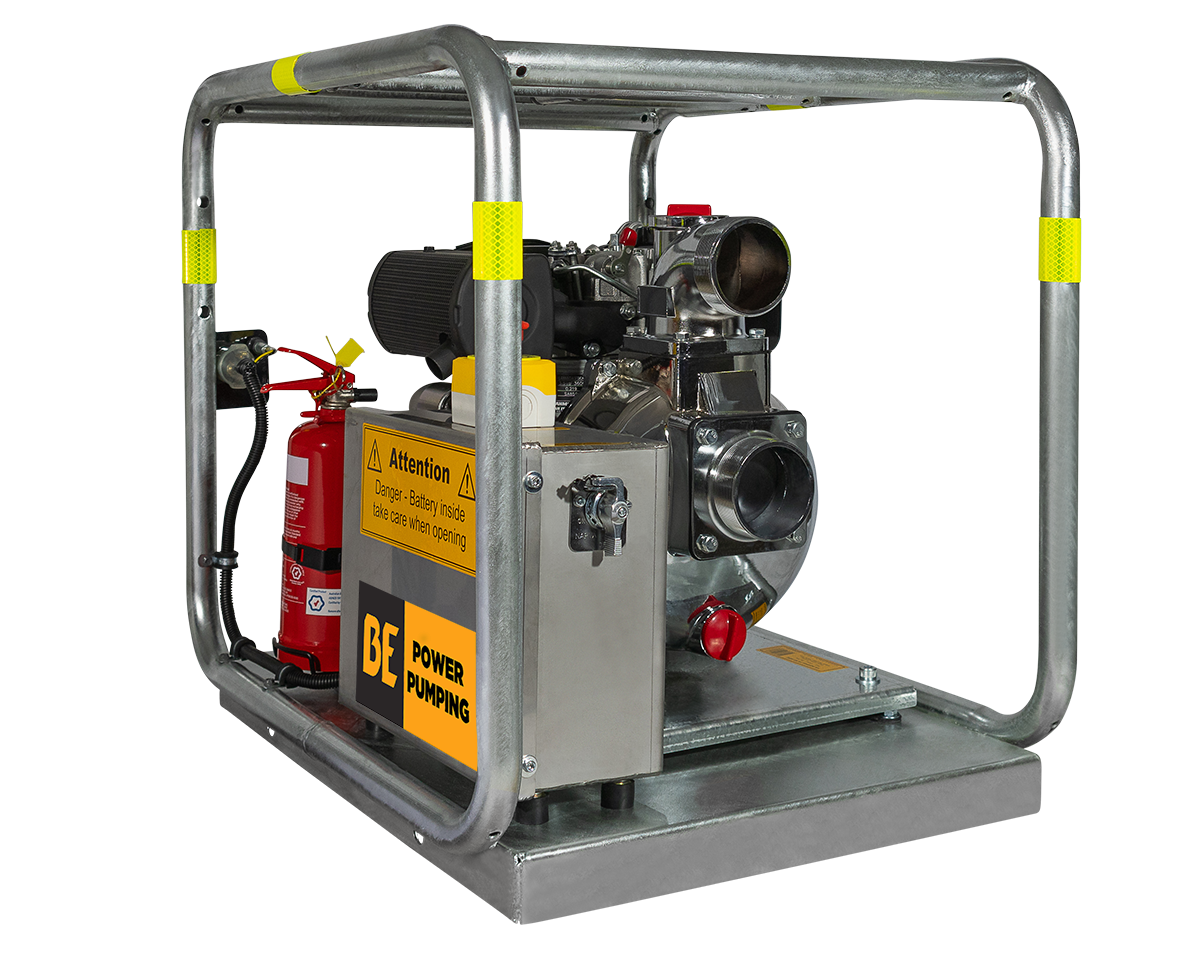

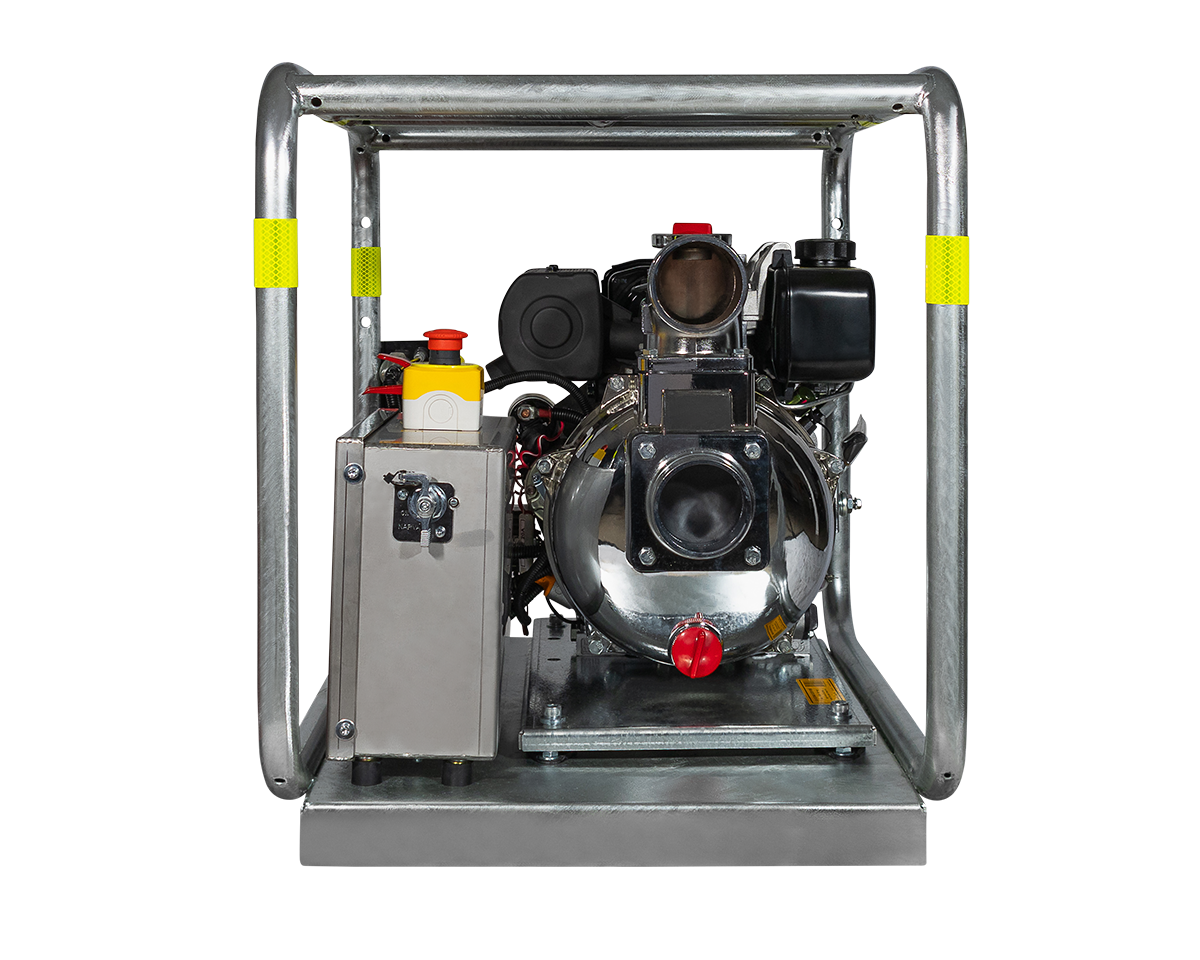

3″ High Volume Transfer Pump Mine
“Built in Australia”, our transfer units boast a rugged, heavy duty frame, quality Yanmar diesel engine and heavy duty aluminium pump body & cast iron impeller.
Features
- 3” BSP inlet and male
- Cast Alloy pump body with cast iron open impeller
- Open impeller and volute permits small solids to pass through the pump and maximize flow rate
- Fast self priming up to 7 m
- Electric start version includes battery mounted to frame
- Replaceable flanged suction and discharge port
- Pump body components made from high quality marine aluminium
- Standard with NBR seals with carbon ceramic mechanical seal
- Extended 3 year pump warranty
- Viton seal upgrade available
- Mine Spec upgrade available. Mine spec upgrade includes emergency stop, battery isolation, fire extinguisher and hi vis reflective tape.
- Mounted in rugged galvanised steel roll frame with anti vibration rubber mounts.
Engine
- Yanmar L48 series, 4.8 hp diesel engine
- Air Cooled Direct injection
- Compact and designed with Yanmars proprietary direct injection technology providing low fuel consumption
- Low vibration and noise achieved through precision balancers
- Yanmar 2 year warranty
- Complies to Australian emission standards
- Design and structure of Yanmar L series engines makes it a hard working engine built with lightweight but hardy alloys and solid crankshaft.
Specifications
- Max Flow: 1,000 L/min
- Max Head: 30 m
- Inlet/Outlet: 3″
- Engine: Yanmar L48 Electric Start @ 4.8 hp
- Suction: 7 m
